Seiko NH05 – In the world of watch modding, movements often fall into two camps: rugged all-rounders like the NH35, and slim quartz modules for budget or size-sensitive builds. But for those of us chasing smaller, mechanical builds—especially under 32mm—there’s now a true alternative: the NH05.
This movement has become the foundation for the rise of small-size Seiko mods, especially in the 26mm–31mm range. And it’s not just another generic TMI calibre. The NH05 has real Seiko DNA, going back over four decades.
🔧 Built on a Legacy: The Seiko NH05 Family Tree
The NH05 didn’t come out of nowhere. It traces its mechanical lineage back to the Seiko 4205, a movement used from 1981 to 1992 in compact divers like the 4205-0155. This calibre was Seiko’s answer to the demand for automatic watches in smaller cases—reliable, compact, and rugged.
That 4205 evolved into the 4206, used in dress and dive watches through the 1990s. Then came the 4207 and 4208, which added more jewels (21) and refined the overall layout. While those calibres lacked manual winding, they were efficient, small-sized automatics that set the foundation for today’s NH05.
| Calibre | Production Years | Jewels | Features | Notes |
|---|---|---|---|---|
| 4205 | 1981–1992 | 17 | Automatic only | Found in compact diver models |
| 4206 | 1992–2002 | 17 | Automatic only | Used in smaller dress watches |
| 4207/4208 | Early 2000s | 21 | Manual wind + hacking | Upgraded with more jewels |
| NH05 | Current | 21 | Manual wind + hacking | Compact, TMI-branded calibre |
| NH06 | Current | 21 | Day-Date, hacking | NH05 variant with added functions |
With the Seiko NH05, the evolution is complete—it keeps the compact footprint, but finally adds modern essentials like hacking and hand-winding.
⚙️ Specs & Technical Features
The Seiko NH05 is an automatic, self-winding mechanical movement designed for small-case builds. Here’s what it brings to the bench:
- Lignes: 7¾”’ (roughly 17.5mm diameter)
- Thickness: 5.92mm
- Jewels: 21
- Beat rate: 21,600 vibrations per hour (6 ticks per second)
- Winding: Automatic & manual (crown-wind)
- Hacking: Yes (second hand stops when setting time)
- Date window: Optional
- Crown turns to full wind: ~55 full turns
- Overwinding: Not possible due to slip clutch in mainspring
- Power reserve: 40+ hours (though some users report closer to 50 hours)
- Accuracy: Claimed -35 to +55 seconds/day in normal operating temps
While that accuracy may sound broad, real-world performance often exceeds spec. And for a sub-£23 movement with full mechanical functionality, it’s a solid trade-off—especially compared to the £40+ NH35.
💡 NH05 vs NH35 – Why It Matters for Small Builds
| Feature | NH05 | NH35 |
|---|---|---|
| Diameter | 17.5mm | 27.4mm |
| Thickness | 5.92mm | 5.32mm |
| Jewels | 21 | 24 |
| Manual Wind | ✅ Yes | ✅ Yes |
| Hacking | ✅ Yes | ✅ Yes |
| Price (avg UK) | £22–33 GBP | £46–80 GBP |
| Case Options – Based on current market – Mid 2025 | 26–31mm | 33–44mm+ |
The NH05 allows modders to build genuinely small mechanical watches—whether for women’s designs, vintage re-creations, or stealthy field builds. Its footprint is small enough to fit cases as small as 26mm, yet still delivers the tactile feel and functionality of modern automatics.

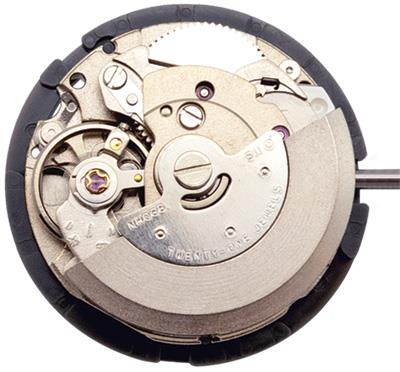

🔁 NH06 – Day-Date Variant
If you’re looking to build something with day/date functionality in the same footprint, the NH06 offers that. It shares the same size, winding system, and general reliability as the Seiko NH05—but adds full calendar complications.
While dial and hand options for the Seiko NH06 are still emerging, it’s an ideal platform for building mini Day-Dates or retro-inspired dual-display watches in smaller cases.
🔩 Why Modders Should Care
The NH05 changes the modding landscape:
- It gives smaller watches the same mechanical depth as larger builds.
- It’s a drop-in replacement for vintage Seiko 420x movements.
- It brings manual winding and hacking to compact builds.
- It keeps costs low for entry-level modding projects.
- It opens the door for more women’s and unisex customs, hopefully we see some soon!
Whether you’re recreating a vintage 26mm Datejust, or paying homage to a modern 31mm with diamond bezel, the NH05 makes it all possible.
For more information on the watch case and bracelet sets currently available for the NH05 calibre – check out the blog Ladies Seiko Mods – The Awesome NH05 Movement – Small Watch Modding in 2025.
🛠️ Final Thoughts
The Seiko NH05 is more than just a scaled-down automatic—it’s a gateway to mechanical modding in smaller formats. For those building at 26mm & 31mm , it’s the most capable and cost-effective movement currently on the market. And with the rising popularity of small watches in 2025, its timing couldn’t be better. Lets hope for more NH05 watch cases from the vendors on Ali Express.
At SeikoModder, we’re already working on a series of builds featuring the NH05 and NH06 in cases from AliExpress and other suppliers. Stay tuned for our full hands-on build logs, guides, and movement swaps in upcoming blogs and videos.
